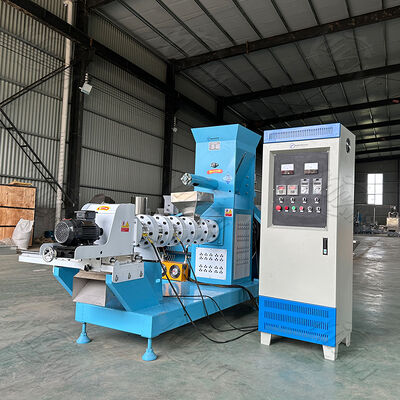

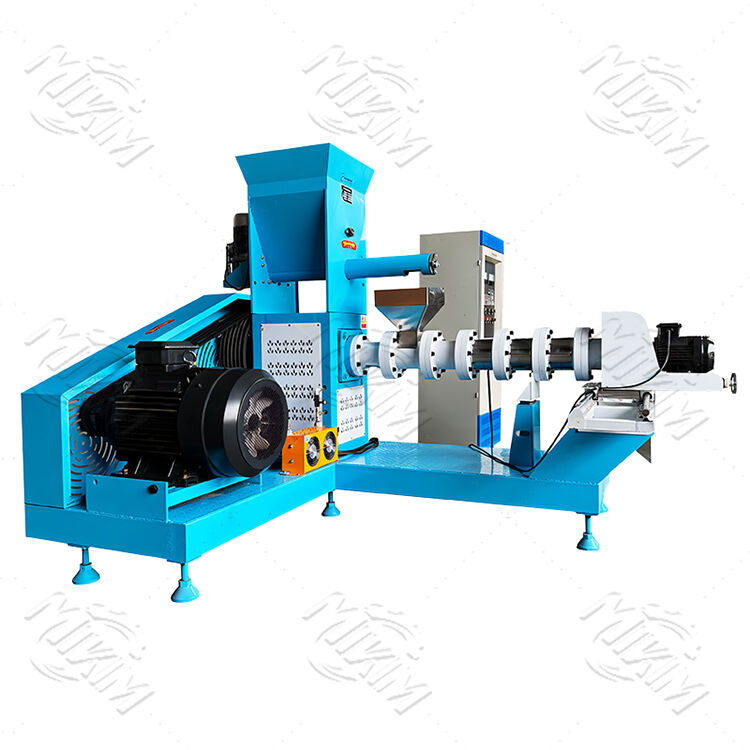

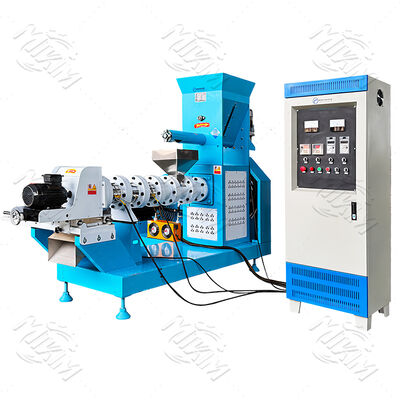

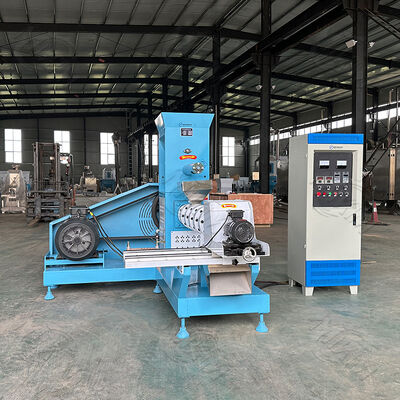

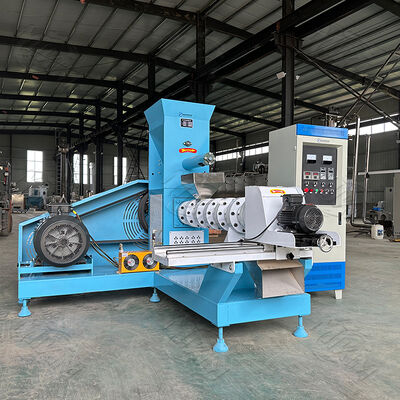

Hot Seller;500kg/h High rust resistance High quality floating fish feed extruder machine Floating Sinking Shrimp Fish Feed Machine Catfish Pet Food Extruder Processing Machinery Price
Datos del producto:
| Lugar de origen: | Porcelana |
| Nombre de la marca: | MIKIM |
| Certificación: | CE |
| Número de modelo: | DGP100,DGP120,DGP135,DGP160,DGP200 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 juego |
|---|---|
| Precio: | $3500.00 - 55000.00/ Set |
| Detalles de empaquetado: | embalado por el paquete o el cargamento de madera de la exportación por el envase |
| Tiempo de entrega: | 7-10 días de trabajo |
| Condiciones de pago: | LC, D/A, D/P, T/T, Western Union, MoneyGram |
| Capacidad de la fuente: | 300 conjuntos por mes |
|
Información detallada |
|||
| Tipo de calefacción: | Electricidad | Historia de fábrica: | 20 años |
|---|---|---|---|
| Condición: | NUEVO | Especificación: | Acero inoxidable 304 |
| Elementos eléctricos: | SIEMENS, ABB o marca china | Automático: | Totalmente automático |
| Operación: | Operación automática simple | ||
| Resaltar: | 500kg/h floating fish feed extruder,high rust resistance fish feed machine,floating sinking shrimp feed extruder |
||
Descripción de producto
Hot Seller: 500kg/h High Rust Resistance Floating Fish Feed Extruder Machine
Product Description
Floating Fish Pellet Feed Extruder Fish Food Pellet Machine Floating Fish Feed Pellet Making Machine
With affordable diesel and electric alternatives, our fish feed extruder manufacturing line is ideal for small businesses and home workshops. Its features include low energy usage to manage power fluctuations, uncomplicated operation requiring little training, and anti-rust materials for humid conditions. It guarantees top-notch pellets for nearby fish farms, supported by local service assistance for repairs and replacement parts. This device is perfect for the expanding aquaculture industry because it can save feed costs by up to 30%.
Key Advantages
- Precise control of process parameters and automation to ensure optimized granule quality: gelatinization, expansion, texture and consistent quality.
- These quality criteria can be achieved because screws ensure homogeneous processing and positive pumping.
- The processing of the viscous paste does not depend on the friction between the screws and the barrel.
- The embedded automatic temperature control and adjustment systems, the modular screw configurations and screw speeds are easily programmed and contribute to the line's high performance.

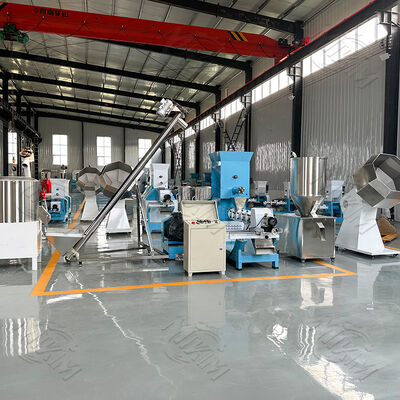

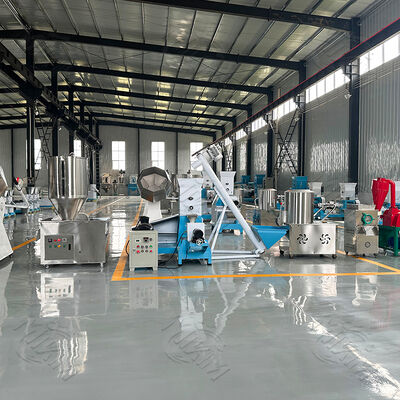

Equipment List in the Fish Feed Production Line
mixer → screw conveyor → twin screw extruder → air conveyor → dryer → hoister → flavoring drum and oil sprayer → cooling machine → packing machine
Product Parameters
| Parameter | DGP-100 | DGP-120 | DGP-135 | DGP-160 | DGP-200 |
|---|---|---|---|---|---|
| Capacity(kg/h) | 500 | 600-700 | 800-900 | 1000-1200 | 1800-2000 |
| Main motor(kw) | 37 | 55 | 75 | 90 | 132 |
| Feeder motor(kw) | 1.5 | 1.5 | 1.5 | 2.2 | 3 |
| Cutter motor(kw) | 1.5 | 1.5 | 2.2 | 2.2 | 3 |
| Screw diameter(mm) | φ100 | φ120 | φ135 | φ160 | φ200 |
| Machine size(m) | 2 * 2.8 * 1.2 | 2.2 * 2.9 * 1.2 | 2.2 * 3.1 * 1.37 | 2.3 * 3.15 * 1.38 | 2.35 * 3.45 * 1.65 |
| Weight(kg) | 1500 | 1800 | 2000 | 2500 | 3200 |
Performance Characteristics
- Custom molds are available upon request for this fish pellet maker, which is a pellet feed extrusion device that can produce a variety of shapes.
- Having a variable-speed rotary cutting device at the discharge port that lets you customize the length and cutting rate by varying the blade's rotation speed.
- Comparing homemade extruded feed to commercial products, it lowers costs by 60% to 80%. Produces smooth, consistently formed pellets that float for more than 12 hours without sinking, improving fish health by sterilizing the water.
- The longer screw and sleeve design of the small extruder extends the time needed to cut materials. A flawless surface finish and high expansion levels are guaranteed by adjustable output torque and temperature.
- It is easy to assemble, disassemble, and maintain for user-friendly operation thanks to its innovative and distinctive design and straightforward construction.
- The screw and screw sleeve are made of high-temperature alloy steel that has been precisely heat-treated to prevent wear and provide remarkable durability and a longer service life.
Final Product Display
Our Services
- Reasonable solution and assist to select the equipment according to the clients specific requirement.
- Professional consultation of market, machinery, technical, raw material, package for you.
- Layout drawing based on your factory.
- Assist visitors make hotel reservation to enjoy the hotel agreement price.
- Feedback of order production progress and loading.
- Shipping logistics consulting service (by sea, air, land, express).
Customer Visits
Qualifications and Awards
FAQ
What is the price of the automatic prawn feed making machine?
The price ranges from approximately $3,500-$55,000
Do you provide maintenance services for your customers?
Yes, we offer comprehensive after-sales maintenance services to our customers.
