Big Output 2 Ton Per Hour Floating Fish Feed Pellet Animal Feed Making Machine Dog Food Plant / Machinery / Production Line
Datos del producto:
| Lugar de origen: | Porcelana |
| Nombre de la marca: | MIKIM |
| Certificación: | CE |
| Número de modelo: | 65,70,75,85,95,120,136 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 juego |
|---|---|
| Precio: | $1500.00 - 9500.00/ Set |
| Detalles de empaquetado: | Embalado en paquete de exportación de madera o carga en contenedor |
| Tiempo de entrega: | 7-10 días laborables |
| Condiciones de pago: | LC, D/A, D/P, T/T, Western Union, MoneyGram |
| Capacidad de la fuente: | 300 juegos por mes |
|
Información detallada |
|||
| El color: | Plata | Material aplicable: | Materias primas para alimentos para mascotas (maíz, harina de carne, harina de pescado, etc.) |
|---|---|---|---|
| Fuerza: | 37 kilovatios | Servicio de venta: | Vida completa |
| Material: | Acero inoxidable | Tamaño de la máquina: | 2*2,8*1,2 |
| Resaltar: | 2 ton per hour floating fish feed machine,dog food production line machinery,animal feed pellet making machine |
||
Descripción de producto
Our advanced pet food processing equipment is designed for efficient production of dog food, animal feed, fish feed, and poultry feed with superior quality and reliability.
- Siemens Motor for reliable power and performance
- Stainless Steel construction for durability and hygiene
- Frequency changer control for easy operation and automation
- Professional installation by our experienced engineers
- 12-month comprehensive guarantee period
- Multi-functional design capable of producing various snack types with interchangeable die heads and models

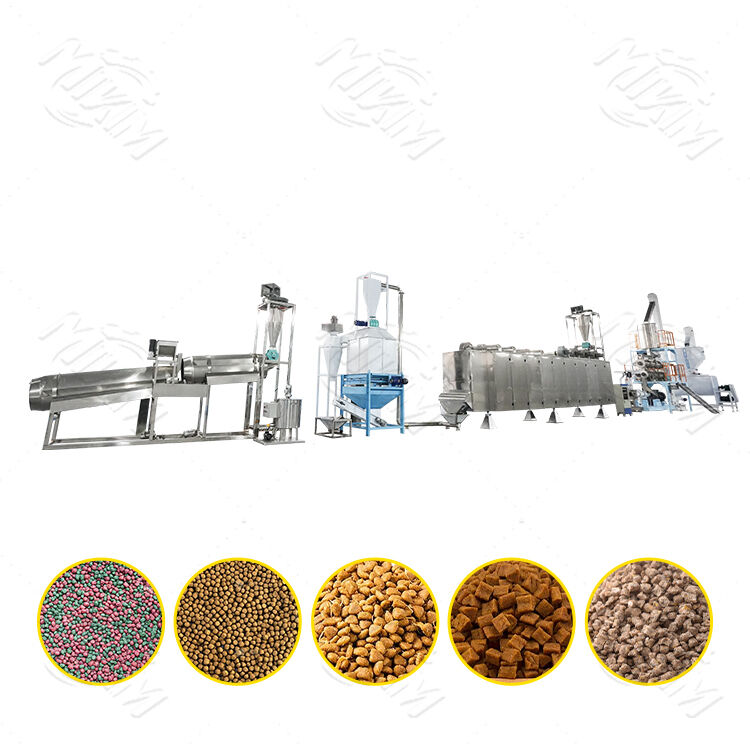

Mixer → Screw conveyor → Twin-screw extruder → Air conveyor → Dryer → Flavoring Line → Cooling machine
- Raw materials including cereal flour, vegetable proteins, minerals, vitamins, and optionally meat or fish flour are processed
- Dry ingredients enter the pre-conditioner for steam hydration with counter-rotary twin shaft blending for optimal mixing
- Partial gelatinization of starches and texturing of polymers occurs during preconditioning

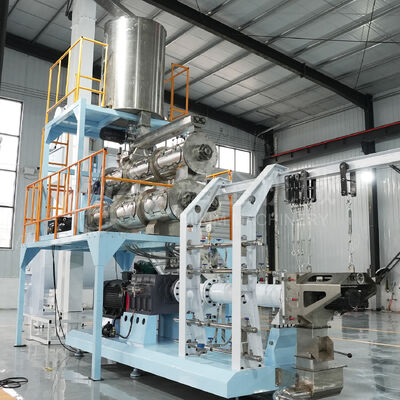

- The mixture feeds into the twin-screw extruder with precise control of shearing, temperature, pressure, moisture, and residence times
- Liquids or steam injection through barrel ports with optional degassing via vent-stuffer
- Granules are shaped through the die, dried to 8-10% moisture, coated with flavoring and fat, then cooled and packaged
| Model (Electric) | Capacity (kg/h) | Main Power | Cutting Blade Power | Cutting Power | Modulated Power |
|---|---|---|---|---|---|
| 65 | 250 - 300 | 22KW | 1.5KW | 1.5KW | 3KW |
| 70 | 500 - 600 | 45KW | 1.5KW | 1.5KW | 3KW |
| 75 | 800 - 1000 | 55KW | 1.5KW | 1.5KW | 3KW |
| 85 | 1200 - 1500 | 90KW | 3KW | 2.2KW | 5.5KW |
| 95 | 2000 - 2500 | 110KW | 3KW | 3KW | 11KW |
| 120 | 3000 - 4000 | 160KW | 5.5KW | 3KW | 15 + 7.5KW |
| 136 | 5000 - 6000 | 200KW | 7.5KW | 5.5KW | 22 + 7.5KW |
Mikim Machinery is a high-tech enterprise integrating scientific research, design, manufacture, installation and commissioning, and after-sales service. With 35 years dedicated to the feed machinery industry, we have passed numerous certifications including CE and ISO. Our expertise spans two main fields: feed pellet machine production lines (hammer mill-mixer-conveyor-feed pellet machine-cooling & vibration system-packing and sealing) and feed extruder production lines (mixer-twin screw extruder machine-dryer-drum seasoning machine-cooling towers-packing machine). We produce high-quality, competitively priced equipment exported worldwide, enjoying an excellent reputation with comprehensive after-sales service to solve all customer problems.
